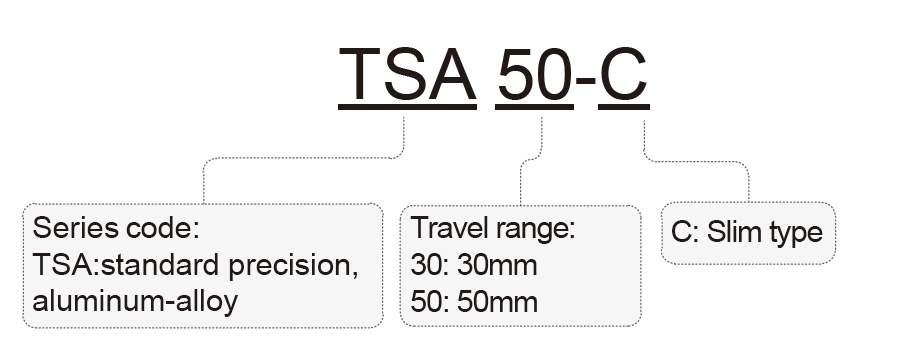

Model number

TSA30-C

TSA50-C

Mechanical specifications

Travel range(mm)

30

50

Table dimensions(mm)

90×90

90×110

Transmission mechanism

Grinding screwsΦ8×1

Guides (guiding mechanism)

Cross-roller guides

Main body materials and surface treatments

Black anodic-oxidation aluminum-alloy

Weight (Kg)

1.3

1.4

Accuracy specifications

Resolution (step/half-step) (μm)

5/2.5

8-fine-subdivision resolution (μm)

0.625

Highest speed (mm/s) *

10

Repositioning accuracy (μm)

≤±5

Backlash clearance (μm)

≤7

Electrical specifications

Motor and its stepping angle (°)

Two-phase 42 stepping motor, 1.8

Working current (A)

1.7

Torque of motor (N·m)

0.42

Position-limit sensors (built-in)

2*KX-EE-SX672

Origin-point sensors (built-in)

1*PI-ITR8104

Operating load

Horizontal direction (Kg)

10

Vertical direction (Kg)

5

Invert direction (Kg)

3
